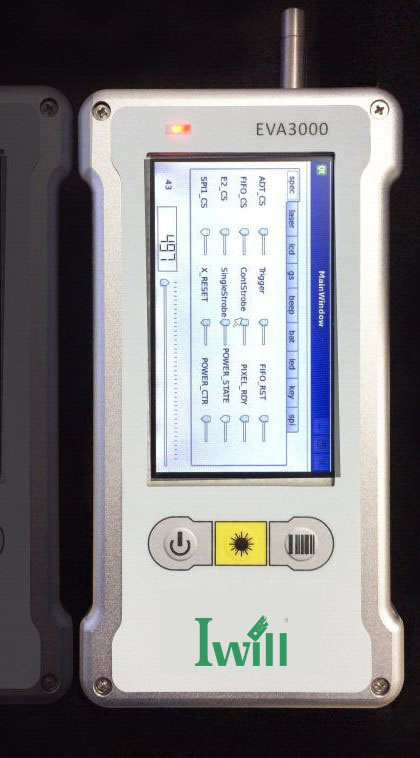

EVA3000手持式拉曼光譜檢測系統
“艾崴科技”旗下產品EVA3000是一款具備國際領先水平的手持式拉曼光譜檢測系統。
EVA3000 is a handheld Raman inspection system designed by Iwill. It has an international advanced level.
EVA3000為滿足非專業技術人員日常使用，整體設計操作簡單快捷，一鍵啟動儀器，即可實現拉曼現場的樣品快速檢測、鑒定。該系統自帶專業的拉曼分析軟件，非常適用于對樣品原材料的篩選、現場檢測及物質分析鑒定等，可廣泛應用于各種行業。尤其適用于食品安全、國防安全和珠寶鑒定等行業。
EVA3000 is designed for daily use of ordinary people (not professional technicians). The overall design and operations are simple. The user can start the instrument by pressing one button and test samples quickly.This system is installed with professional Raman analysis software. It is applicable to the scenarios of raw material filtration, on-site inspection, and material analysis and can be widely used in various industries, especially food safety, national security and jewelry appraisal.
產品特性 Product Features
Ø 配備專業拉曼采樣探頭，可快速完成樣品識別；
Ø 一鍵啟動檢測，導向界面一目了然，觸屏操作；
Ø 可自建客戶數據庫，自動匹配與顯示拉曼分析結果；
Ø 大小樣品均可進行無損現場檢測，專業實用；
Ø 可調節的激光功率，針對不同樣品進行處理，應用更靈活
Ø Linux 3.2系統+Qt圖形支撐系統的開發應用；
Ø 高度集成，輕巧便捷，方便攜帶；
Ø 無線數據可實時更新交換；
- Equipped with a professional Raman probe, EVA3000 can quickly identify samples.
- The user can start EVA3000 simply by pressing a button. With a touch screen, the operation interface is friendly.
- The user can create a customer database to match and show the Raman analysis results.
- EVA3000 supports zero-damage on-site inspection on samples, whether they are large or small.
- With adjustable laser power, EVA3000 supports inspection on various samples and more flexible applications.
- EVA3000 has integrated the R&D and application of the Linux 3.2 system with the Qt graphical support system.
- EVA3000 is highly integrated and portable.
- EVA3000 supports real-time exchange of radio data.

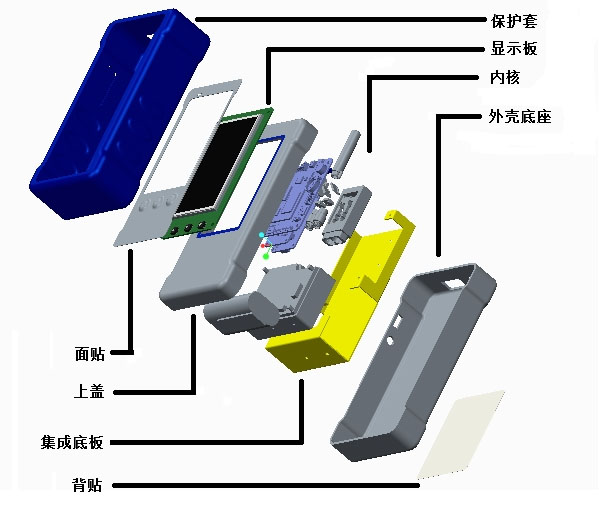

產品結構 Product Structure
產品參數
| 物理參數 | |
| 整機尺寸 | 200 × 105 × 50 mm |
| 整機重量 | 1.2kg |
| 輸出接口 | SMA905 |
| 性能參數 | |
| 光譜范圍 | 200 cm-1～3200cm-1 |
| 波長分辨率 | 18 cm-1 @1000 cm-1 |
| 波長穩定性 | <0.01nm/℃(標準) |
| 激發波長 | 785±0.5nm，線寬＜ 0.08nm |
| 噪音 | ≤1% RMS(10Hz-100MHz) |
| 功率穩定性 | ≤2% P-P(@2hrs) |
| 使用壽命 | 10,000.00hrs |
| 電源電壓 | 8.4V 2A，直流充電適配器 |
| 電池 | 可充電鋰離子電池，工作時長大于3小時 |
| 顯示屏 | 4.3英寸高清晰觸摸屏 |
| 輸出功率 | 0~500mW可調 |
| 積分時間 | 8ms ~2min |
| 濾光片激光截止深度 | OD6 |
| 探頭工作焦距 | 7.5mm |
| 環境參數 | |
| 工作/儲存溫度 | 0 ~ 45℃ |
| 工作/儲存濕度 | 5%-80% |

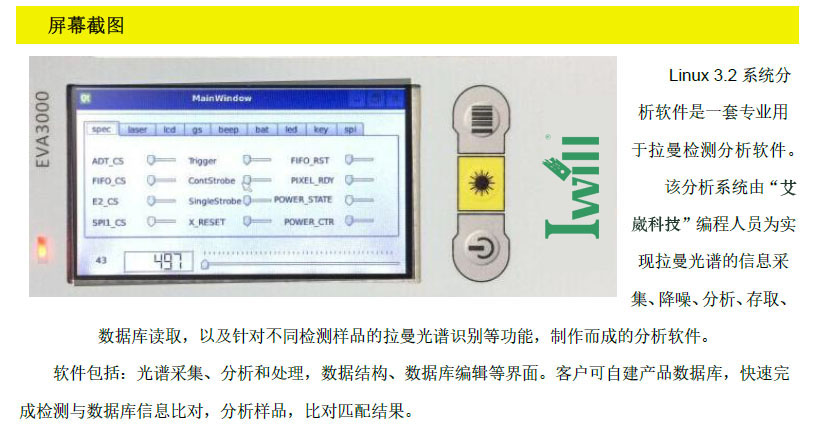

產品效果圖 Photo of the Screen
The Linux 3.2 system analysis software is a set of professional Raman inspection and analysis software developed by Iwill.
It enables the user to collect and analyze information about Raman spectra, reduce noises, and process the database. Besides, it can help the user identify samples with Raman spectra.
The software comprises several modules: spectrum collection, analysis and processing, data structure, and database management. The user can create a product database; after the quick inspection, the user can compare the information in the database and analyze the samples.
